Spare Parts

DC Contactor VAI160

Contactor for DC intermediate circuit VAI 160.

DC contactor VAI40/80

Contactor for DC intermediate circuit VAI40/80.

Relay VAI40/80/160

Switching relay for the intermediate circuit Induction units VAI40/80/160.

Isolation Monitor Bender for VAI

Isolation monitor Bender for VAI induction systems.

High-Current Plug and Coupling for VAI Power Cable

800A connector for VAI induction systems.

Twin Cooler KG-200

Twin cooling unit with two separate cooling circuits for VAI 160 induction treatment units.

Display for VAI

Display for VAI induction systems.

Rectifier MDC300-16 (160kW)

Rectifier for induction system VAI160.

Rectifier MDC160-16 (40/80kW)

Rectifier for induction systems VAI 40kW + 80kW.

IGBT Absorption Capacitor 2uF, 1200V

IGBT absorption capacitor 2uF, 1200V.

VAI-IGBT Driver Bord

IGBT electronics board for controlling the IGBTs.

IGBT FF450R 12KT4 for VAI160

IGBT FF450R 12KT4 for VAI 160kW induction systems.

IGBT FF450R 12KT4 for VAI80

IGBT FF450R 12KT4 for VAI 80kW induction systems.

IGBT FF300R 12KT4 for VAI40

IGBT FF300R 12KT4 for VAI 40kW induction systems.

Capacitor 50uF, 1250V

Capacitor 50uF, 1250V for VAI induction systems.

Main Board VAI

Main Board BT056 for VAI induction systems.

Swivel Castor for VAI

Swivel castor for VAI 40/80 kW, swivel castor with mounting plate and “stop-fx” brake.

Fixed Castor for VAI

Fixed castor for VAI induction systems.

Voltmeter

Voltmeter for VAI induction systems.

Emergency Main Switch KG80

Emergency main switch KG80 for resistant heat treatment unit 45kW.

Thermocouple Socket Type K

Replacement connector for compensating cable.

Thermocouple Plug Type K

Thermocople plug for connection to Type K thermocouple wire and as a replacement plug for compensating cable.

Program Controller TC-80

The TC 80 replaces the TC 60 previously used in STANDARD EUROPA series heat treatment units.

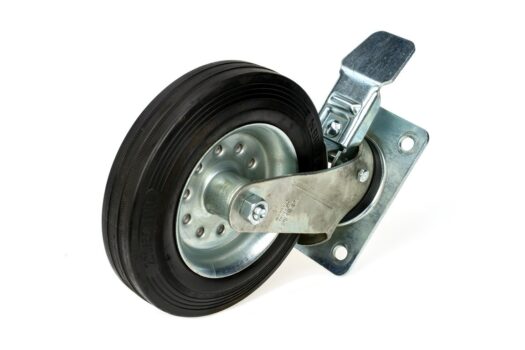

Caster Wheel

Caster wheel Ø200mm for resistance heat treatment units, complete.

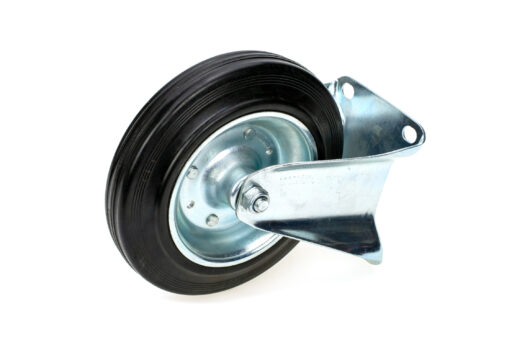

Fixed Wheel

Fixed wheel Ø200mm for resistance heat treatment units, complete.

Schuko Socket

Schuko panel socket 16A.

CEE-Plug 125A

CEE Plug 125A for STE 82/6-12, VAS 82/6-12 for VAI 80.

CEE Plug 63A

CEE Plug 63A for STE 45/6-, STE 70/12 for VAI 40.

FI-Converter

The FI-Converter is a spare part for glow plug resistant heat treatment units.

FI-Circuit Breaker (RCD)

All STE series systems have an internal RCD circuit breaker.

Thermocouple Panel 6-way (vertical)

To connect Type K thermocouples.

Thermocouple Panel 1-way (vertical)

Single thermocouple panel type K.

Panel Mounted Sockets K35-70 with Hinged Cover

Output sockets for twin cables and splitter cables.

Fan, Complete

Fan for STE and VAS units.

Emergency Main Switch KG210

Emergency main switch KG210 for resistant heat treatment units 130kW.

Emergency Main Switch KG160

Emergency main switch KG160 for resistant heat treatment units 100kW.

Emergency Main Switch KG125

Emergency main switch KG125 for resistant heat treatment units 70-80kW.

Door Limit Switch

Door Limit Switch for resistant heat treatment units.

NH 2 Fuses 400A

NH-2 fuse 400A is a robust circuit breaker in size NH 2, designed for high currents and high breaking capacities.

NH 2 Fuses 300A

NH-2 fuse 300A is a robust circuit breaker in size NH 2, designed for high currents and high breaking capacities.

NH 1 Fuses 250A

NH-1 fuse 250A is a robust circuit breaker in size NH 1, designed for high currents and high breaking capacities.

NH 1 Fuses 200A

NH-1 fuse 200A is a robust circuit breaker in size NH 1, designed for high currents and high breaking capacities.

NH 00-Fuses 125A

NH-00 fuse 125A is a robust circuit breaker in size NH 00, designed for high currents and high breaking capacities.

NH 2-Fuse Base 1-Pole

NH 1-Fuse Base 1-Pole

NH 00-Fuse Base 1-Pole

Fine Fuses 2A

Fine Fuses 1A

LED 230V / red

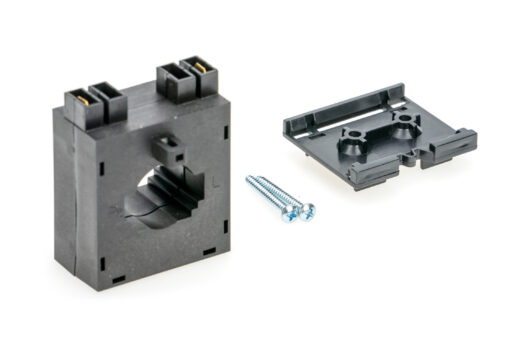

Transformer 400/5A

Transformer 200/5A

Ammeter 400/5A

Ammeter 200/5A

Scale 50mm

Knobs for Energy Controllers

Ersatzteil für Energiesteller.

Energy Power Control Complete

The energy power control complete is used in STE and VAS systems for manual power output control.

Lamps for A/M Switches

Spare part for Manual/Automatic switch.

A/M Switch

Zone Contactor CWM 95

Zone contactor CWM 95 for heat treatment units 100kW.

Zone Contactor CWM 65

Zone contactor CWM 65 for heat treatment units 70–82kW.

Zone Contactor CWM 50

Zone contactor CWM 50 for heat treatment units 45/82/130kW.

Teflon Cable 6mm², Blue

Teflon cable for repairing a heating element.

Ceramic Beads Overview

Various ceramic beads for the manufacture of a heating mat.

Insulation Pad for Preheater with Magnetic

Insulation Pad for Preheater with Magnetic 900×100 mm.

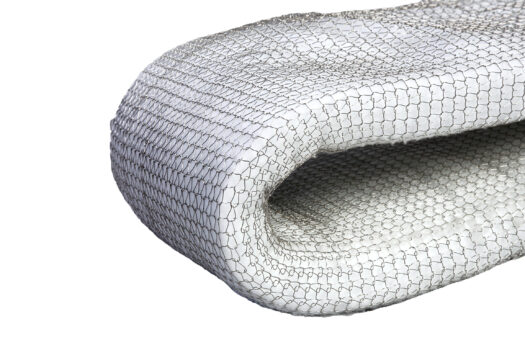

Insulation Cushion Preheater

Insulation Cushion Preheater 900x100mm

Back Plate Magnetic Preheater

Back Plate Magnetic Preheater 900x100mm stainless steel.

Back Plate Preheater

Back Plate Preheater 900x100mm, stainless steel

Special Ceramic Beads

Various special ceramic beads for the production of channel heaters, one-line heating cables, etc.

Repair Beads

Defective beads in the heating mat can be replaced individually.

Heating Mat Connection, Complete

Spare parts for heating elements.

Special Notching Pliers

Special notching pliers for attaching Nickel-Connectors.

Pot Magnet 60mm

Extremely flat design with high adhesive force. Supplied with zinc safety plate and plastic spacer.

Cold Tail Wire

Cold Tail Wire Nickel 212.

Heating Wire

Heating wire Ni-Cr 80/20.

Safery beads

Spare parts for heating elements.

Nickel-Connector

The Nickel-Connector is used to connect "hot and cold" cables.

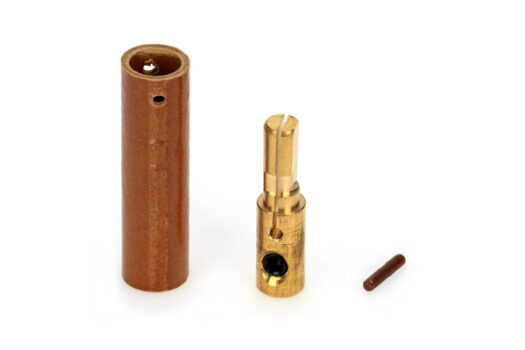

60A Camlock Plug Spare Parts

Spare parts for Camlock 60A plug.

60A Camlock Socket Spare Parts

60A Camlock socket, spare parts

Socket K 10-25 DINSE System

Socket K 10-25 DINSE System.

Plug K 10-25 DINSE System

Plug K 10-25 DINSE System.

Fiberglass Hose 20/25mm

Protective hose for inductors

Fiberglass Fabric Adhesive Tape

Fiberglass fabric adhesive tape.

Magnet Holder for Inductors, Double

Inductor magnetic holders in double design with two pot magnets each 60mm.

Magnet Holder for Inductors, Single

These magnetic holders are essential for attaching coil inductors to vertical and round components.

USB Adapter Cable

Connection cable for data transfer from inverter WR10.5 to a PC (USB).

Software

Software for inverter WR10.5 on USB stick.

Filter Mat Complete with Grid WR10.5

Filter mat complete with grid for inverter WR 10,5.

Multi-Zone Cable 2-3-4-5-6

Multi-zone cable 2-3-4-5-6 for inverter WR10.5.

Thermocouple Plug type K with Strain Relief

Thermocouple plug male with strain relief, type K

Thermal Coupling type K with Strain Relief

Thermal coupling with strain relief, type K.

Thermocouple Socket Type K

Replacement connector for compensating cable.

Thermocouple Plug Type K

Thermocople plug for connection to Type K thermocouple wire and as a replacement plug for compensating cable.

Series Сonnection Вridge

Series connection bridge for connecting 2x 30V heating elements in series for 60V connection.

Connection Clamp Ceramic 2-Poles

Connection clamp ceramic 2-poles.

Camlock Socket 300A

Camlock socket 300A.

Camlock Plug 300A

Camlock plug 300A.

Camlock Socket 60A

Camlock socket 60A.

Camlock Plug 60A

Camlock plug 60A.

Socket K 70-95 DINSE System

Socket K 70-95 DINSE System.

Socket K 35-50 DINSE System

Socket K 35-50 DINSE System.

Socket K 10-25 DINSE System

Socket K 10-25 DINSE System.

Plug K 35-50 DINSE System

Plug K 35-50 DINSE System.

Plug K 10-25 DINSE System

Plug K 10-25 DINSE System.

Membrane Keyboard for DIGIT 700

Self-adhesive replacement membrane keyboard for the Digit 700 program controller.”

Membrane Keyboard for TC 80

Self-adhesive replacement membrane keyboard for the TC 80 program controller.

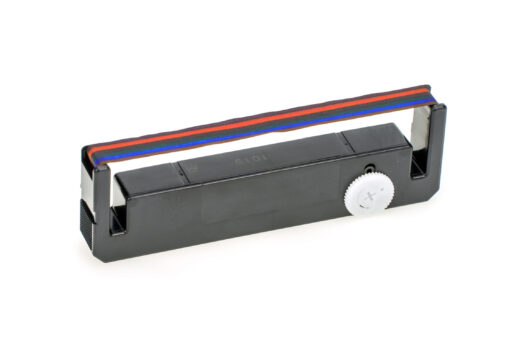

Cartridge for Recorder Series BH/KH/AH

6-colour ribbons (red, black, blue, green, brown, purple).

Calibration Certificate

A calibration certificate is an official document issued by our Weldotherm laboratory and a qualified specialist.

Recorder Door for BH Recorder

Replacement door for BH temperature recorder (3D print).

Print Head for KH-60

Print head for KH temperature recorders.

Print Head for KL-60

Print head for KL 60 temperature recorders.

Folded Paper for Recorders BH/KH/AH

Recorder paper 180 mm wide, with WELDOTHERM print 0–1200 °C.

Folded Paper for Recorders KL/AL

Recorder paper 120 mm wide, with WELDOTHERM print 0–1200 °C.
